Radar Sensor Automatic Sliding Door Opener

2021-04-16 Automatic Sliding Door Operator 3931

MOQ: 1 set

Payment Term: TT, Paypal, Western Unoin

FOB, CIF, EXW are all available

Lanxi Jiaoying Trading Co.,Ltd

Radar Sensor Automatic Sliding Door Opener

Tech-Information

Weight bearing: 180kg for one leaf, 130kg per leaf for 2

Door width: 500mm-2800mm

DC 24V motor

60W, AC 110-280V, 50Hz or 60Hz

Termperature: -40℃ to 50 ℃

Noise exposure: max 60db

Opening/closing speed: 450mm/s - 750mm/s

Opening time: 0s-20s

Half open or total open all available

Advantage:

1. reliability

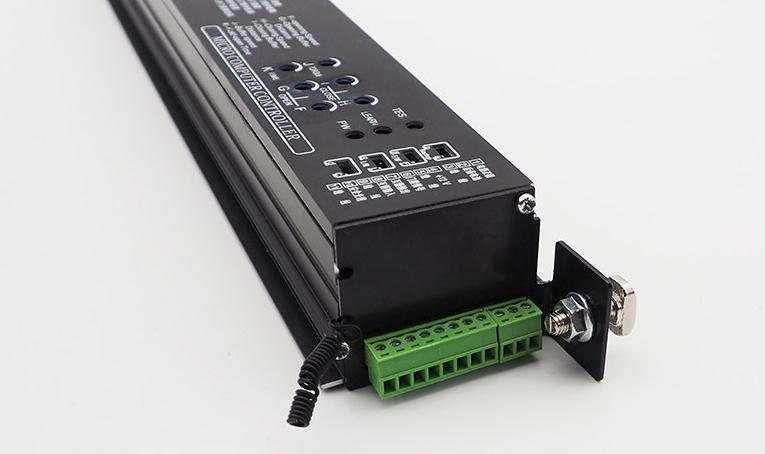

Receive sensors or other signal switches, drive the motor, and control the door to move in an appropriate way. Designed for China, no need to use transformer. Two sets of built-in auxiliary light sensor interfaces are added to further improve product safety and versatility.

The DC brushless motor with small size and high power is used, and the high-speed gearbox system with high transmission efficiency and low noise is used to reduce speed, and then drive the belt. The built-in safety device can open and close frequently, and can also run without failure for a long time. The motor drive pulley is made of metal, free of repair.

2. Convenience

The aging period makes the construction very simple. You only need to connect various plug-ins and power on to run.

3. safety

Bounce back

When the door leaf is in the closed state and encounters pedestrians or obstacles, the door leaf can automatically rebound and open the door immediately to prevent people from being caught and damage to the mechanical parts.

4. Improve the life of automatic doors

When the power fails, the door leaf is light and convenient to open; when the opening and closing action is running, if the power fails, the door will stop moving, and the door leaf resistance is very small, so you can easily open the door manually.
