Customized Rapid Aluminum Spiral Door
Description
Spiral Door is widely used in industry area include factories,parking lot,warehouse,food industry.
With heavy duty door panel,It is perfect in insulation protection as well as security.
Spiral doors are assembly completely in customized wooden package before transport to our customer--Easy installation and Easy shipping.
| Door panel | 40 mm thickness Aluminum Alloy with insulated |
| Door size | Max Width:8000mm, Max Height:10000mm |
| Operation speed | 0.5~2.0m/s, Adjustable |
| Optional manufacturer process | Galvanized, vision windows,top cover box,optional panel color,etc.. |
SERVO Drive System

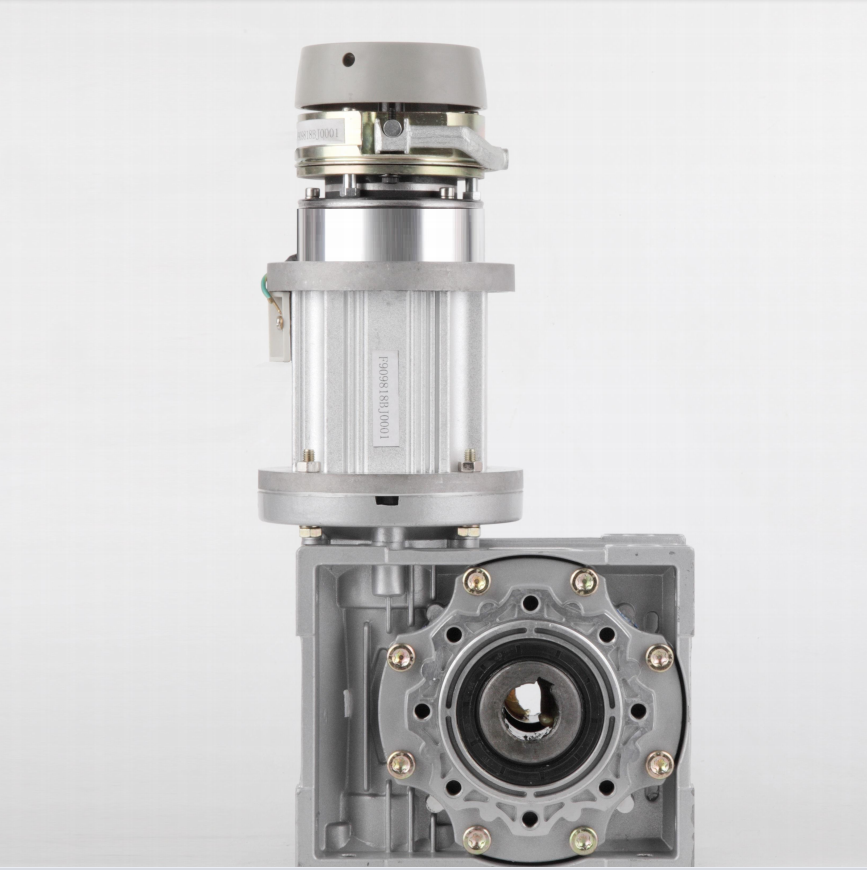

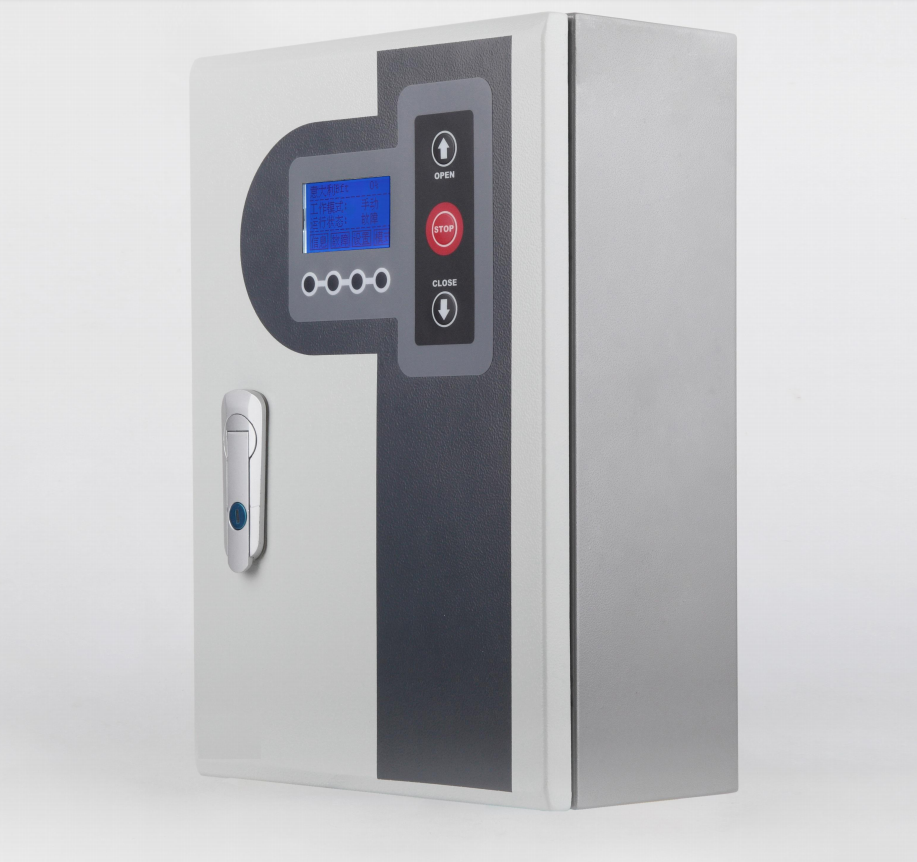

SERVO Controller | SERVO Motor |
|
|
*1.5KW,1.8KW,2.2KW optional *IP54 *Equiped with Absolute Encoder *Torque Servo System *Manual release:Hand crank *Electro Mechanical Brake | *Power supply AC 220±10 *IP54 *Over-current Protection, Over-voltage Protection Under-voltage Protection, Overheating Protection and Overloading Protection *Working temperature: -35℃~60℃ *Wall Mounted installed |
Spare Parts

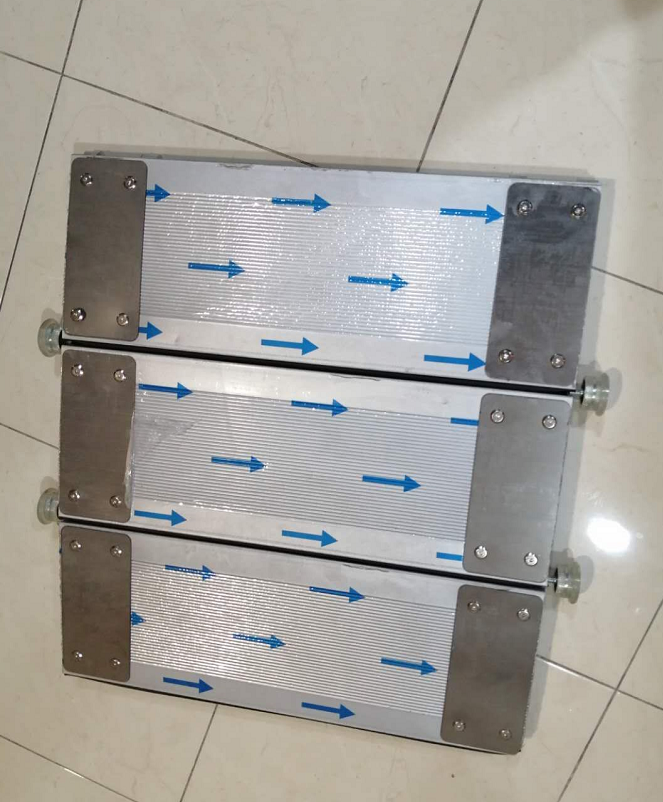

1,)Door Panel

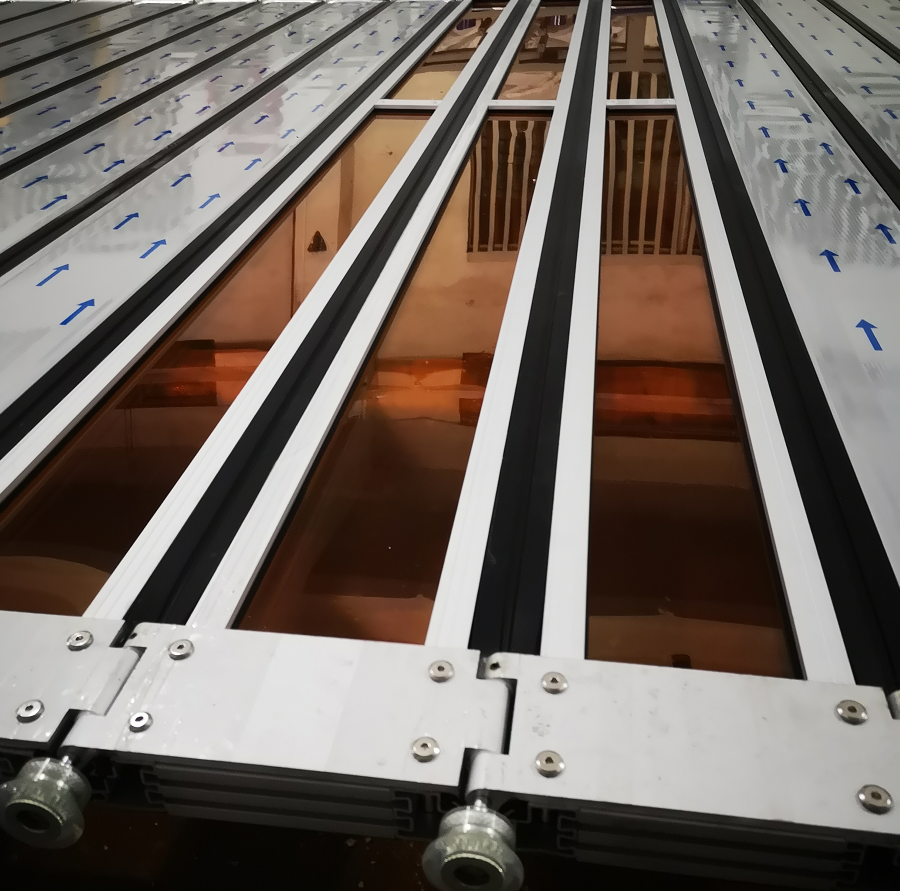

2,)Vision Windows
3,)Rolling Track

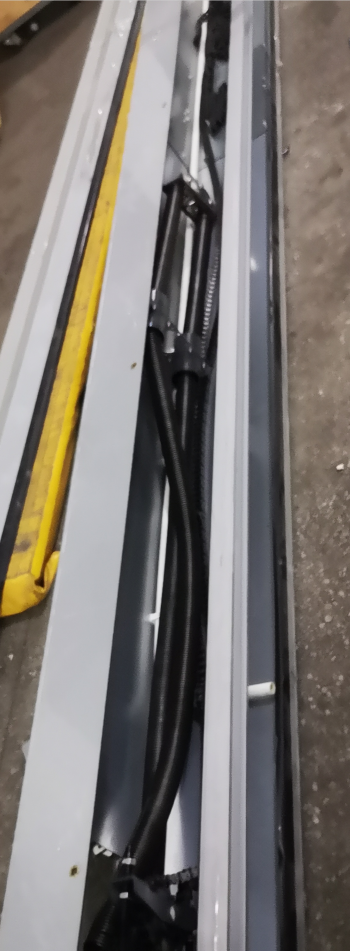

4,) Door Columns
